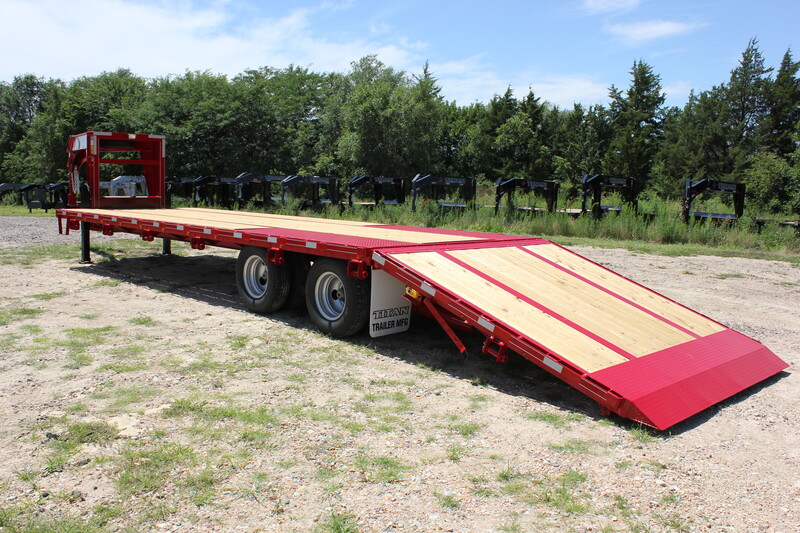

GVWR 20k-24k Flatbed
Available Lengths
- 16', 18', 20', 22', 24', 26', 28', 30', 32', 34', 36'
Available Paint Colors
 |
Birch Metallic |
 |
Chestnut Metallic |
 |
Deep Blue Metallic |
 |
Gunmetal Metallic |
 |
Stealth Gray Metallic |
 |
Desert Tan |
 |
Bright Red |
 |
Construction Yellow |
 |
Deep Green Metallic |
 |
Implement Orange |
 |
Super White |
 |
Vibrant Green |
 |
Bright Silver Metallic |
 |
Dark Gray Metallic |
 |
Deep Red Metallic |
 |
Jet Black |
 |
Battleship Gray |
Available Pin Striping Colors
 |
Silver |
 |
Gold |
 |
Black |
 |
Maroon |
 |
White |
 |
Green |
 |
Charcoal |
 |
Blue |
 |
Red |
Estimated Weights
| Length | Axles | Est. Base Weight |
|---|---|---|
| 16' | 2 x 10000# | 5180# |
| 18' | 2 x 10000# | 5420# |
| 20' | 2 x 10000# | 5740# |
| 22' | 2 x 10000# | 6000# |
| 24' | 2 x 10000# | 6280# |
| 26' | 2 x 10000# | 6560# |
| 28' | 2 x 10000# | 6840# |
| 30' | 2 x 10000# | 7120# |
| 32' | 2 x 10000# | 7400# |
| 34' | 2 x 10000# | 7680# |
| 36' | 2 x 10000# | 7960# |
Standard Features
Channel Iron Rub Rail w/ Stake Pockets & 5/16” Flat
235/R16 - 10 ply Tires
Electric Brakes on all 4 Wheels
Provider 235/R16 - 10 ply Spare Tire
3” Channel Crossmembers on 16” Centers
Sealed Beam Recessed L.E.D. Lights
Coated Inner Frame Under Floor
Treated 2”x 8” Floor Boards (up to 24’ no Splice)
7-Prong Cold Weather Cord
Chain Box Between Uprights with Lid
Dual Binkley Spring Loaded Dual Pin Jacks
Side Braces From Frame to Floor
Loading Jacks at Rear
Breakaway Battery Box with Charger and Tester
Stem Made With Same I-Beam as Frame
2-5/16” Adjustable Goosneck Coupler
Safety Chains & Hooks
Notes
- Trailers 29' to 32' in Total Length will have 1 - 8" Torque Tube and 1 Heavy I-Beam Crossmember
- Trailers 33' to 36' in Total Length will have 2 - 8" Torque Tubes and 2 Heavy I-Beam Crossmembers
- Trailers 37' and over in Total Length will have 3 - 8" Torque Tubes and 3 Heavy I-Beam Crossmembers
- 8" Torsion Pipe will run from the front of the trailer to the axle area through Heavy I-Beam Crossmembers set on 5' Centers
- 18' Minimum Deck Length to Add 6' Wideglide Tail
Optional Features
Axles (Non-Standard Axles may increase lead time)
10,000# Heavy Duty Tandem Dually Oil Bath Drum Brakes
10,000# General Duty Torsion Oil Bath Drum Brakes w/ 5 Provider 235/17.5 J Radial Tires
10,000# Heavy Duty Torsion Dually Oil Bath Drum Brakes w/ 9 - 10 ply Provider Radial Tires
10,000# G.D. Tandem Dually Oil Bath w/ Electric over Hydraulic Drum Brakes
10,000# H.D. Tandem Dually Oil Bath w/ Electric over Hydraulic Disc Brakes
10,000# H.D. Tandem Dually Oil Bath w/ Air Brakes
Triple 10,000# General Duty Dually Spring Oil Bath w/ Electric Drum Brakes
12,000# Tandem Dually Oil Bath Drum Brakes
12,000# Tandem Dually Oil Bath w/ Electric over Hydraulic Disc Brakes
12,000# Tandem Dually Oil Bath w/ Air Brakes
15,000# Tandem Dually Oil Bath w/ Electric Drum Brakes - Includes 215R17.5H Tires on a Metric Bolt Pattern
Air Ride Axles
Dexter HDSS Suspension
Miscellaneous Options
Additional 8" Torque Tube
8" Torsion Pipe that runs lengthwise of the trailer in lieu of Torque Tubes
Ramp & Tail Options
6' Wide Glide w/ 2- 48" Fold Over Ramps with Load Jacks
6’ Combo Dovetail w/ 2 - 32" Fold Over Ramps & 32" Lift Up
5’ Combo Dovetail w/ Lift-up Center & 2 Fold Over Ramps
5’ Stationary Dovetail w/ 3 Fold Over Ramps
5’ Stationary Dovetail w/ 2 Fold Over Ramps
4’ Lift-Up Dovetail w/ 2 Slide-In Ramps
Double Pivot on Combo Tail (Takes out the Hump in the Transition from the Ramp to the Trailer)
I-Beam Options
Upgrade from 19# I-Beam to 22# I-Beam
