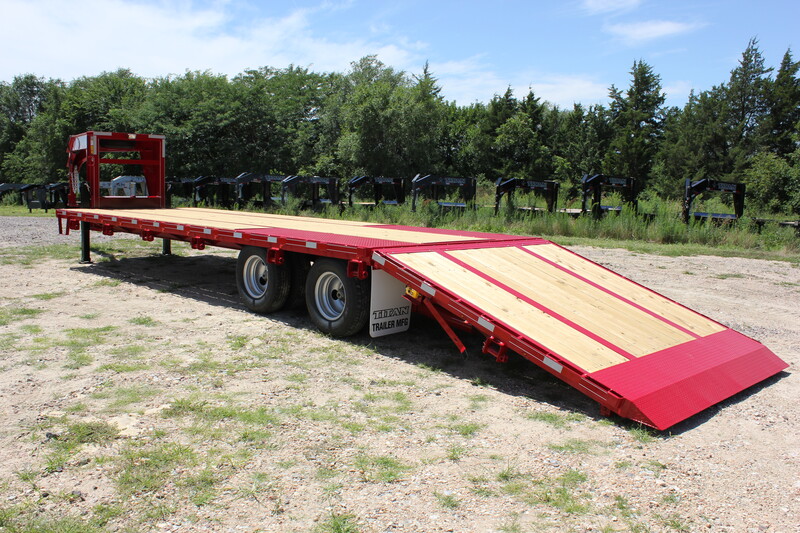

GVWR 14k-16k Flatbed
Available Lengths
- 16', 18', 20', 22", 24', 26', 28', 30', 32', 34', 36'
Available Paint Colors
 |
Birch Metallic |
 |
Chestnut Metallic |
 |
Deep Blue Metallic |
 |
Gunmetal Metallic |
 |
Stealth Gray Metallic |
 |
Desert Tan |
 |
Bright Red |
 |
Construction Yellow |
 |
Deep Green Metallic |
 |
Implement Orange |
 |
Super White |
 |
Vibrant Green |
 |
Bright Silver Metallic |
 |
Dark Gray Metallic |
 |
Deep Red Metallic |
 |
Jet Black |
 |
Battleship Gray |
Available Pin Striping Colors
 |
Silver |
 |
Gold |
 |
Black |
 |
Maroon |
 |
White |
 |
Green |
 |
Charcoal |
 |
Blue |
 |
Red |
Estimated Weights
| Length | Axles | Est. Base Weight |
|---|---|---|
| 16' | 2 x 7000# | 3980# |
| 18' | 2 x 7000# | 4200# |
| 20' | 2 x 7000# | 4480# |
| 22" | 2 x 7000# | 4720# |
| 24' | 2 x 7000# | 5020# |
| 26' | 2 x 7000# | 5220# |
| 28' | 2 x 7000# | 5420# |
| 30' | 2 x 7000# | 5580# |
| 32' | 2 x 7000# | 5860# |
| 34' | 2 x 7000# | 6120# |
| 36' | 2 x 7000# | 6380# |
Standard Features
Channel Iron Rub Rail w/ Stake Pockets & 5/16” Flat
235/R16 - 10 ply Tires
Electric Brakes on all 4 Wheels
Provider 235/R16 - 10 ply Spare Tire
3” Channel Crossmembers on 16” Centers
Treated 2” x 8” Floor Boards (up to 24’ no Splice)
Coated Inner Frame Under Floor
Chain Box Under Deck
7-Prong Cold Weather Cord
Side Braces From Frame to Floor
Binkley Spring Loaded Dual Pin Jack
Breakaway Battery Box with Charger and Tester
Loading Jacks at Rear
2-5/16” Adjustable Gooseneck Coupler
Stem Made With Same I-Beam as Frame
Safety Chains & Hooks
Notes
- Trailers 16' to 26' in Total Length have 14# I-Beam
- Trailers 27' and Longer in Total Length have 16# I-Beam
- Triple Axles Recommended on trailers 30' and Longer
- Trailers 29' to 32' in Total Length will have 1 - 8" Torque Tube and 1 Heavy I-Beam Crossmember
- Trailers 33' to 36' in Total Length will have 2 - 8" Torque Tubes and 2 Heavy I-Beam Crossmembers
- Trailers 37' and over in Total Length will have 3 - 8" Torque Tubes and 3 Heavy I-Beam Crossmembers
- 8" Torsion Pipe will run from the front of the trailer to the axle area through Heavy I-Beam Crossmembers set on 5' Centers
- 18' Minimum Deck Length to Add 6' Wideglide Tail
Optional Features
Axles (Non-Standard Axles may increase lead time)
8000# Torsion EZ Lube Drum Brakes with 14 ply Tires
Triple 7000# Torsion EZ Lube Drum Brakes (Includes Double Jacks and a Toolbox Between Jacks)
Triple 8000# Torsion EZ Lube Drum Brakes (Includes Double Jacks, Toolbox Between Jacks, and 14 ply Tires)
Spring EZ Lube
Oil Bath
Electric over Hydraulic on Tandem 7000# & 8000# Drum Brakes
Disc Brakes in Lieu of Drum Brakes
Miscellaneous Options
Additional 8" Torque Tube
8" Torsion Pipe that runs lengthwise of the trailer in lieu of Torque Tubes
Ramp & Tail Options
6' Wide Glide w/ 2 - 48" Fold Over Ramps with Load Jacks
6’ Combo Dovetail w/ 2 - 32" Fold Over Ramps & 32" Lift Up
5’ Combo Dovetail w/ Lift-up Center & 2 Fold Over Ramps
5’ Stationary Dovetail w/ 3 Fold Over Ramps
5’ Stationary Dovetail w/ 2 Fold Over Ramps
4’ Lift-Up Dovetail w/ 2 Slide-In Ramps
Double Pivot on Combo Tail (Takes out the Hump in the Transition from the Ramp to the Trailer)
I-Beam Options
Upgrade from 14# I-Beam to 16# I-Beam
Upgrade from 16# I-Beam to 19# I-Beam
Upgrade from 19# I-Beam to 22# I-Beam
