Lo-Glide Tail Utility

Lo-Glide Tail Utility

Available Lengths

  • 12'+3', 14'+3', 16'+3', 18'+3', 20'+3', 22'+3'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Available Pin Striping Colors

Silver
Gold
Black
Maroon
White
Green
Charcoal
Blue
Red

Estimated Weights

Length Axles Est. Base Weight
12'+3' 2 x 7000# 2660#
14'+3' 2 x 7000# 2880#
16'+3' 2 x 7000# 3000#
18'+3' 2 x 7000# 3420#
20'+3' 2 x 7000# 3680#
22'+3' 2 x 7000# 3840#

Standard Features

I-Beam Main Frame
3' Lo-Glide Tail with 2 Fold Over Ramps
I-Beam Tongue
Chain Box
7000# Torsion EZ Lube Axles
Electric Brakes on all 4 Wheels
8 Bolt Hubs
Stake Pockets Welded to Frame
Spare Tire
2-5/16” Adjustable Bumper Hitch Coupler
Coated Inner Frame Under Floor
Treated 2”x 8” Floor Boards
3” Channel Crossmembers on 16” Centers
14 ga. Diamond Plate Fenders
Spring Loaded Dual Pin Jack
Breakaway Battery Box with Charger and Tester
Sealed Beam Recessed L.E.D. Lights
7-Prong Heavy Cord

Optional Features

Axles (Non-Standard Axles may increase lead time)

Triple 7000# Torsion EZ Lube Axles
8000# Torsion EZ Lube Axles w/ 14 Ply Radial Tires (81" wide between fenders)
Surge Brake (Bumper Hitch Only)

Flooring Options

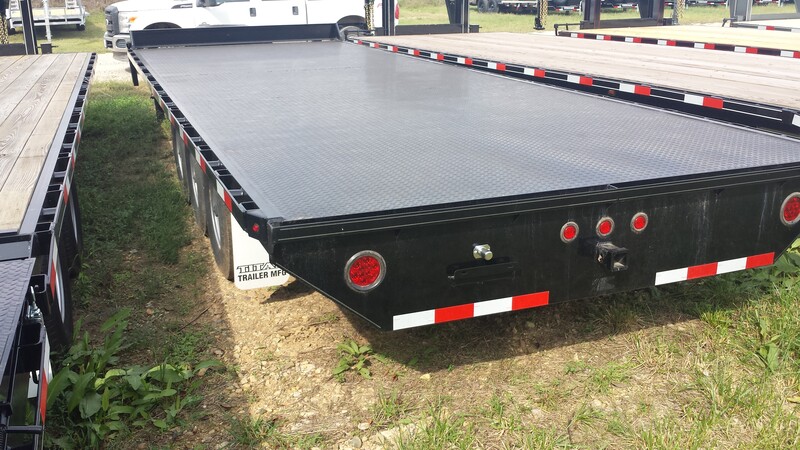

Steel Floor (Includes 12” Cross members)

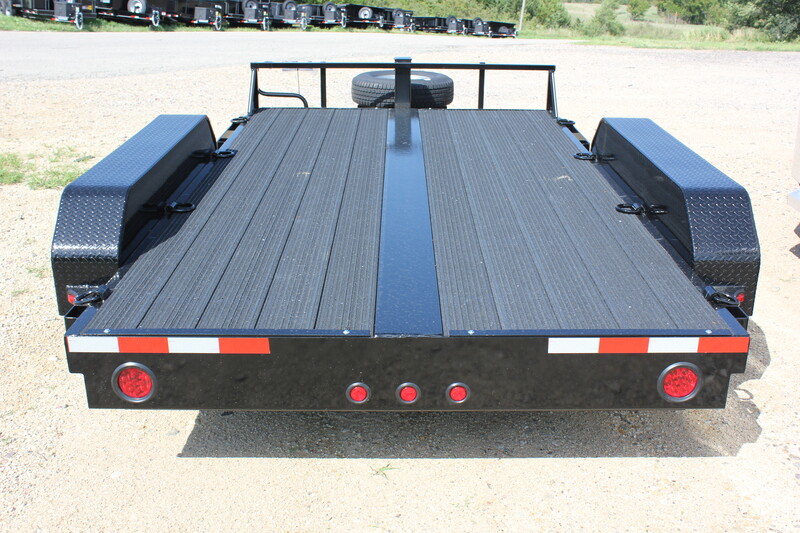

Rubber Composite Flooring (Includes 12" Cross members)
Blackwood Rubber Infused Lumber - Full Deck Width (Decks Over 20' Long has Split Floor)
Blackwood Rubber Infused Lumber- 3 Outside Boards Each Side (Decks Over 20' Long has Split Floor)

Miscellaneous Options

Tubing Rail - Length of Trailer
Channel Iron Front Rail
Double Dual Pin Jacks
Add Lockable Lid to a Chain Box on a Bumper Hitch
Chain Box with Lid Between Jacks - Available only in a Gooseneck with Double Jacks
Welded Heavy Duty D-Ring (each)

Stem & Frame Options

Gooseneck
Pintle Hitch

Fender Options

Removable Fenders (Each)
Drive Over Fenders
Raised Expanded Metal on Drive Over Fender Inclines Only
11 ga. Diamond Plate Fenders
