Standard Bumper Hitch Livestock

Standard Bumper Hitch Livestock

Available Lengths

  • 10', 12', 14', 16', 18', 20'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Available Pin Striping Colors

Silver
Gold
Black
Maroon
White
Green
Charcoal
Blue
Red

Estimated Weights

Length No. Center Gates Axles Est. Base Weight
10' 0 2 x 6000# 2980#
12' 0 2 x 6000# 3160#
14' 1 2 x 6000# 3340#
16' 1 2 x 6000# 3480#
18' 1 2 x 6000# 3800#
20' 1 2 x 6000# 3980#

Standard Features

Notes

  • ANY TRAILER OVER 20’ WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
  • STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION
  • WEIGHTS MAY VARY ACCORDING TO OPTIONS

Optional Features

Sides & Windows

Classic Sides
Enclosed With Metal
Plexiglas
Steel Lined with Galvanneal (Classic Sides Only)
Other Than 54" Sides
Split Sides
Double Deck
Aluminum Tongue and Groove Decking for Double Deck Trailers
Split Escape Door
Bull Package (Cross Members, Uprights & Roof Bows on 12” Centers)
Cross Members only on 12” Centers
Uprights only on 12” Centers
Brush Fenders

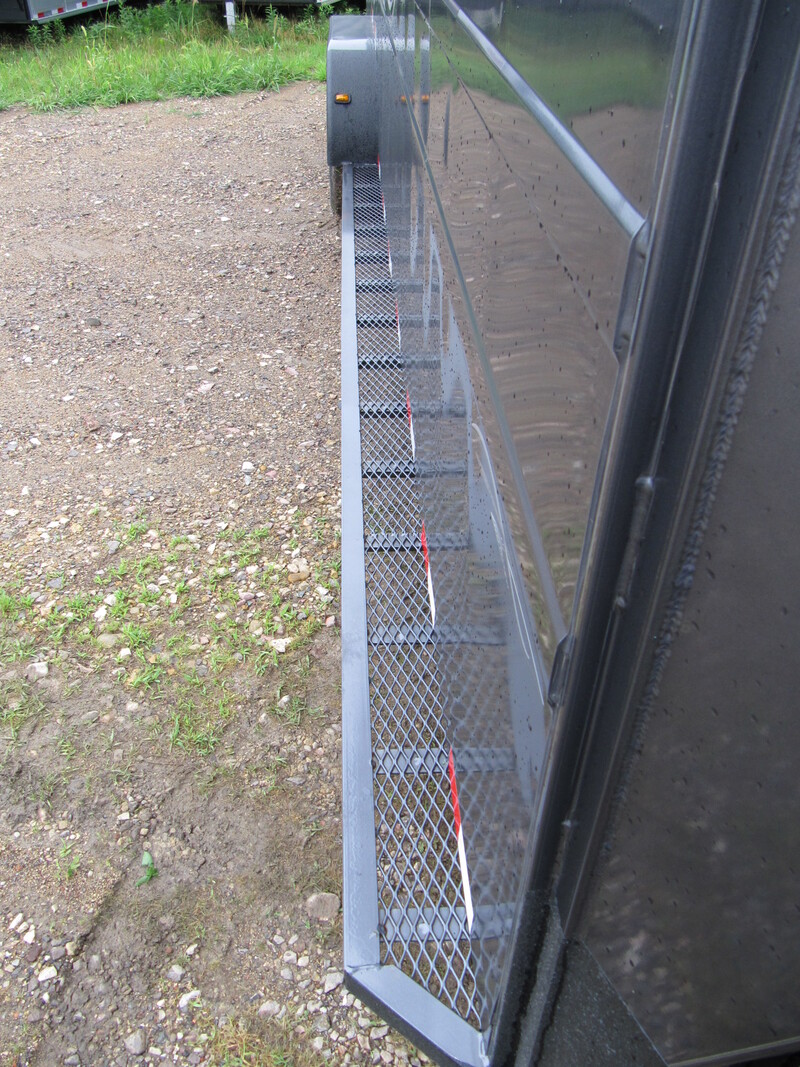

Catwalk Running Boards

Height & Width Options

7’ Tall
7 ½’ Tall
8' Tall
8 ½’ Tall
9' Tall
7 ½’ Wide
8’ Wide

Lights & Trim

Illuminated Titan Hat Nose Graphic
Illuminated Name Plate on Nose
Extra LED Dome Light

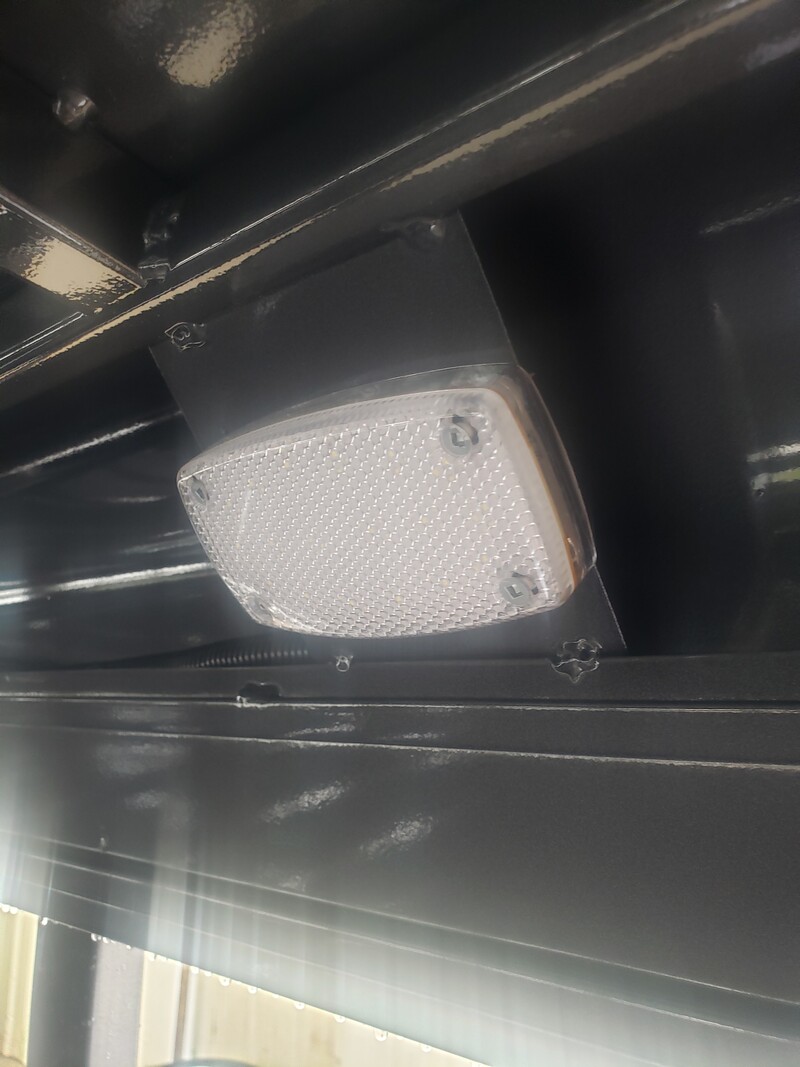

LED Porch Light
LED Back-Up Lights
Double Tail Lights

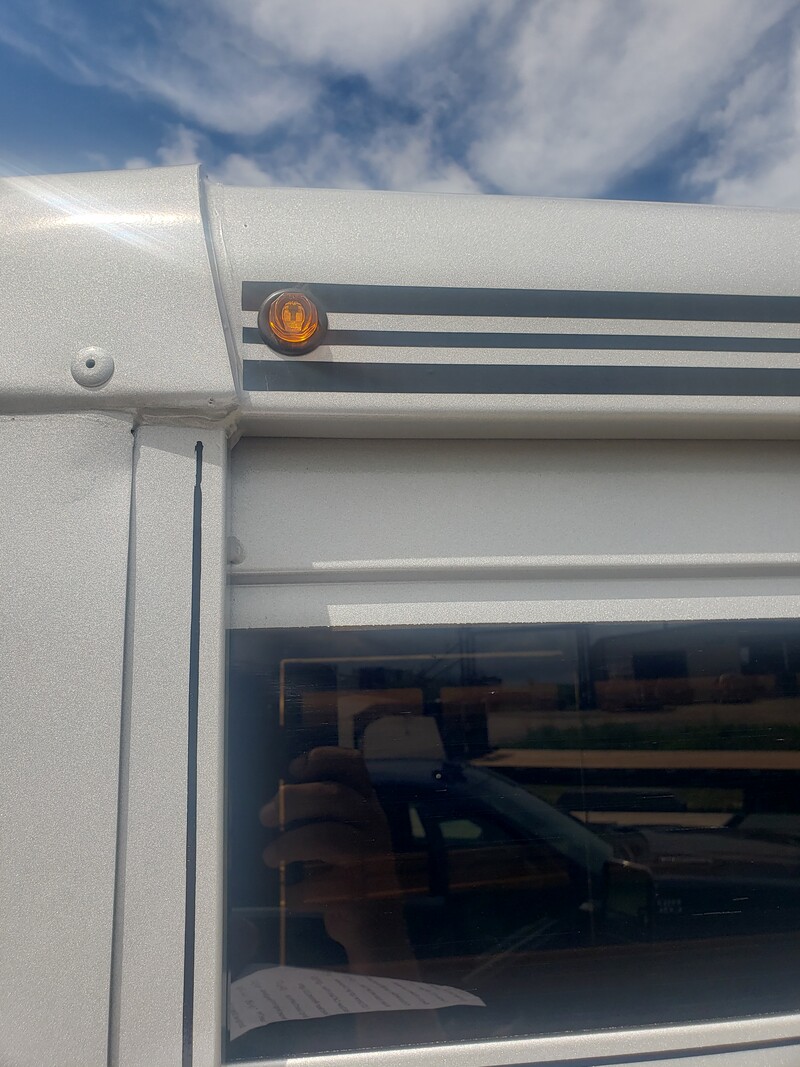

Extra Clearance Light
3 Lights in Nose
Top Clearance Lights at Rear
Mid-Mount LED Turn Signals (Per Pair)
LED High-Beam Loading Light
6 Prong Plug
7-Way Plug with Cold Weather Cord (Stays Flexible during Winter)
Semi Plug with Double Tail Lights
Wire Plug to Receiver Hitch
Elite Shield (Line X Equivalent) Gravel Guard (Per Square Foot)

Doors, Windows, Vents, & Ramps

Extra Escape Door
48" Wide Escape Door
54" Wide Escape Door
Extra Factory Steel Door
Screened Camper Door w/ Vertical Window (Will not work with a Swingout Saddle Rack)
Walk thru Door in Solid Wall
Aluminum Fold Down Rear Ramp w/ Double Doors Above
Aluminum Fold Down Rear Ramp Behind Back Door(s)
4’ Aluminum Side Ramp with Door Above
5' Aluminum Side Ramp with Door Above
6' Aluminum Side Ramp with Door Above
2-Way Pop Up Roof Vent
Dome Style Roof Vent with 12V Fan
Dome Style Roof Vent Braced for AC
Mid Mount Drop Down Feed Door w/ Window and Drop Bars
16”x24” Vertical Window w/Slide in Factory Steel Door
30”x30” Bus Window w/ Slide
12”x24” Bus Window w/ Slide
18”x44” Bus Window w/ Slide
18”x24” Bus Window w/ Slide
14”x34” Bus Window w/ Slide

Aluminum Options

Brushed Aluminum Fenders
Aluminum Tread Bright Fenders
Aluminum Hay Rack (5' x 8') and Aluminum Ladder
Aluminum Tread Bright Gravel Guard Package

Center Gate & Back Gate Options

Upgrade to Sliding Center Gate from Standard Center Gate
Extra Center Gate
Extra Sliding Center Gate
Extra Gate Setting
Floating Center Gate (Set on 6" Adjustments - Will Latch Ahead of Escape Door)
Delete Center Gate
One Piece Slatted Back Gate
Back Gate Fully Enclosed With No Slide
Back Gate Fully Enclosed With ½ Slide

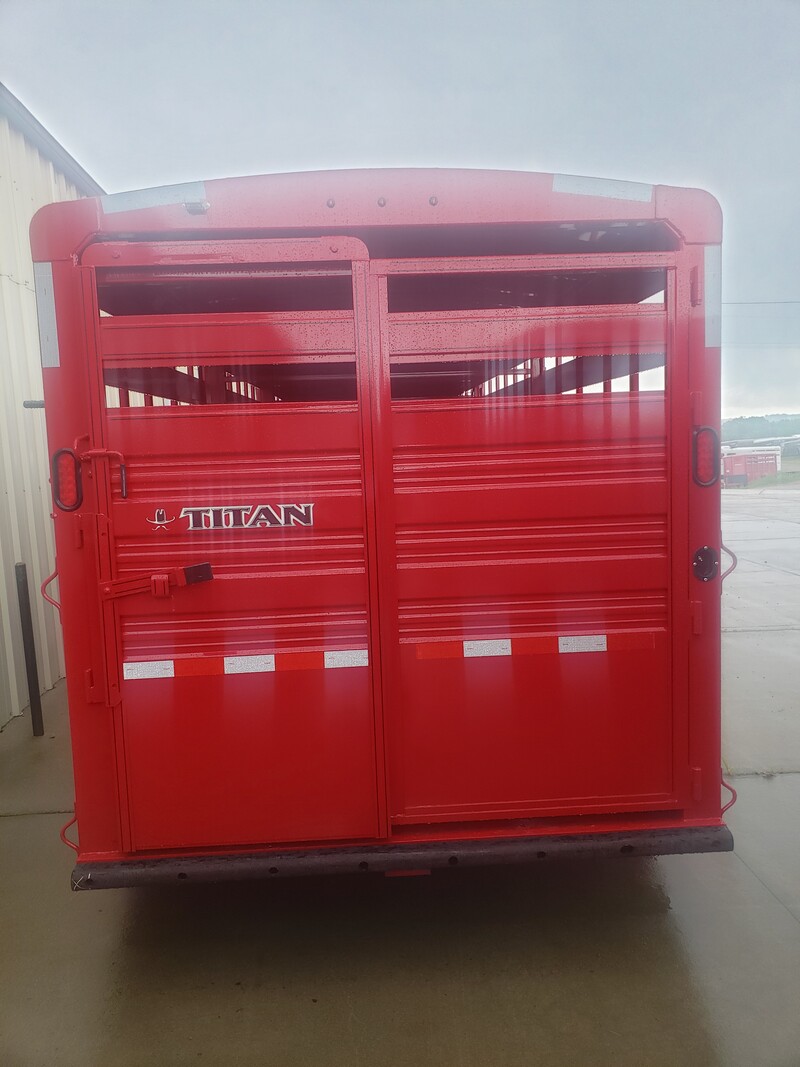

Double Back Doors w/ Cam Locks and Lockable Hasps
Slatted Double Back Doors w/ Cam Locks and Lockable Hasps
Anti-Sag Block on Center Gate in Open Position
Outside Center Gate Release to Shut Gate
Beef Up Center Gate with Extra Tubing
Beef Up Center Gate with Extra Tubing and Tube Post on Hinge Side
Drop/Prop Rod on 1/2 Slide Back Gate
Multi-Position Back Gate Lock (Locks Back Gate Open in Multiple Positions)

Compartments & Dividers

Permanent Rear Tack w/ Double Back Doors
Collapsible Rear Tack
Mid-Tack Full Width Behind Dress Wall w/ Door
Mid-Tack in Corner of Dress Room w/Door
Stud Gate (not telescopic, Slant Center Gate)
Slant Divider
Hang Rubber Mat from Bottom of Divider
Divider Extension
Straight Load Feed Manger w/ Head Divider, 2 Feed Doors, 2 Tack Doors 2-1 Tier Saddle Rack
Straight Divider w/ Butt Bars, Breast Bar, Swinging Head Divider, and Removable Post
Solid Dressing Room Wall w/ Factory Steel Door & Sub-Floored
Swing Wall w/ Sides Enclosed to Front
Bi-Fold Swing Wall w/ Sides Enclosed to Front
Swing Wall w/ Sides Not Enclosed
Bi-Fold Swing Wall w/ Sides Not Enclosed

Axles (Non-Standard Axles may increase lead time)

Spring EZ Lube
Oil Bath Hub (Per Axle)
Surge Brakes
Single 7000# Torsion EZ Lube
7000# Torsion EZ Lube

Tires (Goosenecks)

Provider 10 ply
Provider 14 ply
Provider 215R17.5 H
Aluminum Wheels

Jacks

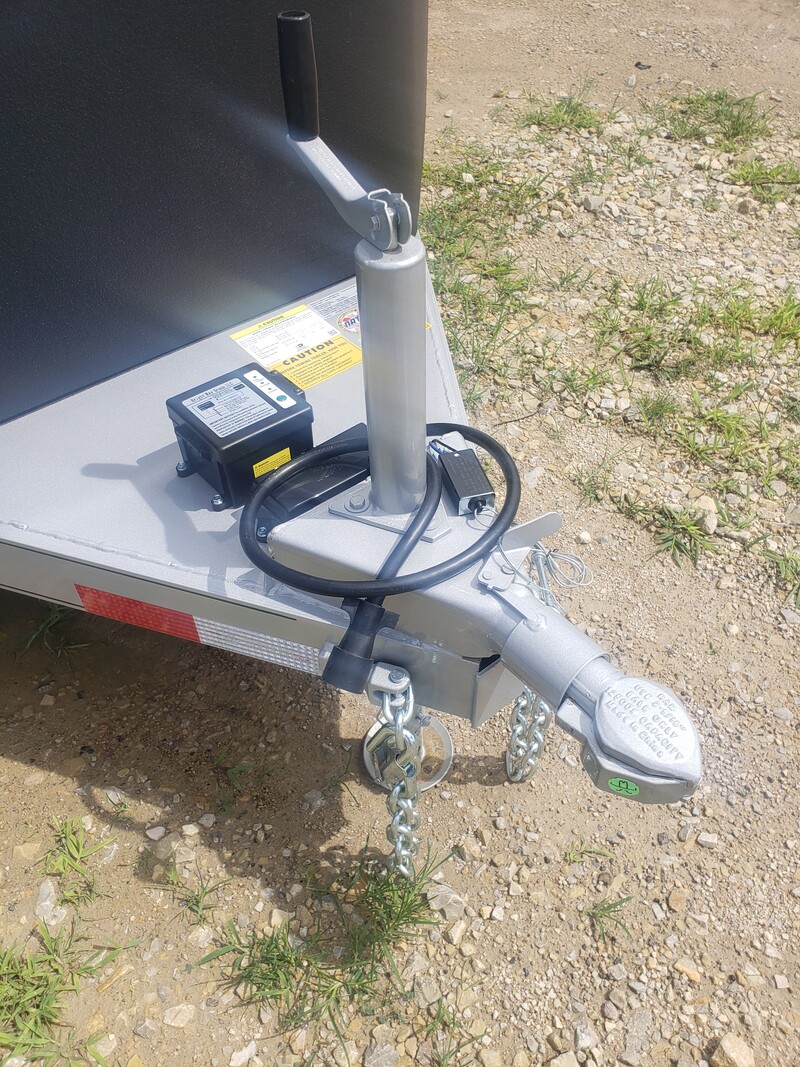

5K Topwind Jack (in Lieu of 2K) in A-Frame Coupler
Double 12,000# Dual Pin Jacks
2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Double 2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Single Bulldog Velocity Series 12,000# Electric Jack (Includes Battery & Battery Tray)
Double Bulldog Velocity Series 12,000# Electric Jack (Independent Control, Includes Battery and Battery Tray)
Single Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Double Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.

Flooring Options

Sure Foot Flooring (Rubber Floor System - Self Draining)
Blackwood Rubber Infused Lumber
Rubber Composite Flooring (Includes 12" Cross Members)
Tread Rubber
Rubber Floor Mats

Dressing Room/Tack Room Options

Tack Organizer
Kick Mat on Slant Wall (Horse Side)
2 - Single Tier Slide out Saddle Racks (Straight Load Trailers Only)
3 Tier Saddle Rack
4 Tier Saddle Rack
Extra Saddle Rack Setting
Swingout Blanket Bar (6 Tier)
Removable Bridle Hook Bar (4 Bridle Hooks)
Extra Bridle Hook
Extra Tie Loop
Extra Brush Tray
Extra Blanket Bar
Water Tank
Full Width Boot Box - Oak with Titan Logo
1/2 Boot Box - Oak with Titan Logo
Electrical Package - 30A Cord, Breaker Box and 1 Outlet
Additional Outlets
13,500 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
15,000 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
Carpet Package

Horse/Stock Area Options

Buggy Ramps
Corner Feed Bag
Padded Stall
Undercoat Inside Roof
Undercoat Underneath of Trailer
Undercoat Inside Walls 20" Up

Miscellaneous Options

Tie Rail On Side
Receiver Hitch
Camper Step
Panel Hooks
Skid Plate on Rear Bumper
Battery Tray
12 Volt Deep Cycle Battery
Aluminum Battery Box
Plastic Battery Box
Propane Tray
Awning
Block Axles up 2"
Extend Tongue 12"
Plate/Beefed-Up Rear Corners - Standard on 24' and Above

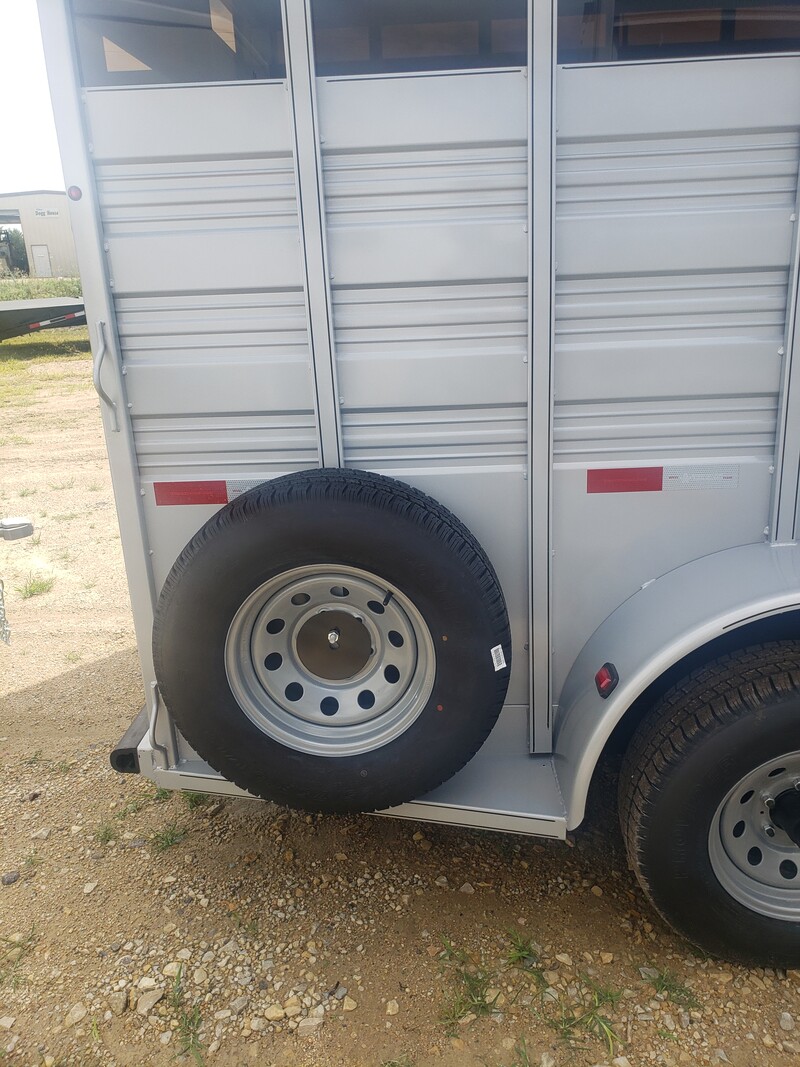

EZ Jack Mounted Under Spare Tire
