Ranchero Livestock

Ranchero Livestock

Available Lengths

  • 10', 12', 14', 16', 18', 20', 22', 24', 26', 28', 30', 32'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Available Pin Striping Colors

Silver
Gold
Black
Maroon
White
Green
Charcoal
Blue
Red

Estimated Weights

Length No. Center Gates Axles Est. Base Weight
10' 0 2 x 6000# 3600#
12' 0 2 x 6000# 3980#
14' 1 2 x 6000# 4460#
16' 1 2 x 6000# 4840#
18' 1 2 x 7000# 5280#
20' 1 2 x 7000# 5760
22' 1 2 x 7000# 6140#
24' 2 2 x 7000# 6780#
26' 2 2 x 7000# 7220#
28' 2 2 x 7000# 7680#
30' 2 2 x 7000# 8100#
32' 2 2 x 7000# 8520#

Standard Features

1/2 Nose with Ruff Neck Stem
*Brush Fenders with Upper Supports
4" Pipe Rear Bumper
Rectangle Tube Upper Side Slats
1/2 or 3/4 Top

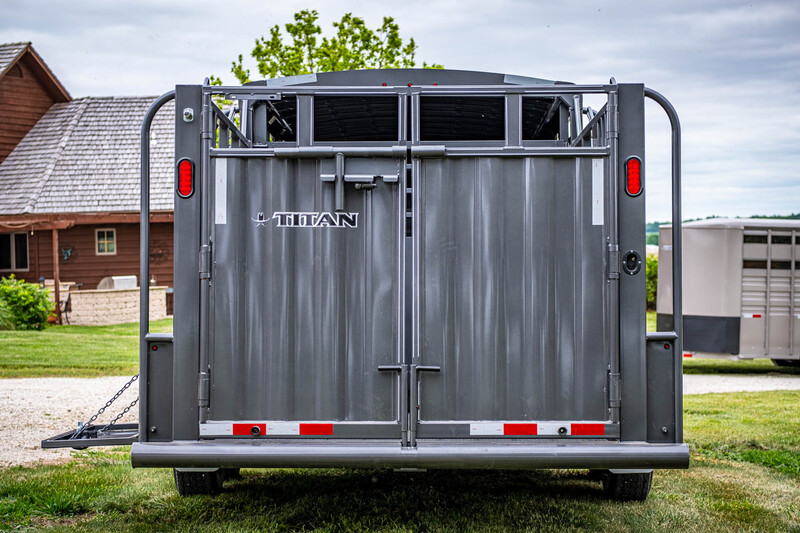

Back Gate w/ 1/2 Slide, Slam Latch & Butterfly Latch
1" Gapped Floor along the Sides
Slam Hold-Backs on Center Gates
Crossmembers, Uprights, & Roof Bows on 16" Centers
32" Escape Door on Passenger Side
4' Tall - 14 Ga. Corrugated Sides
6'6" Inside Height
6'8" Wide
2" x 5" Tubing Frame
Fold Down Calf Gate in Nose Standard (2 swing out gates used if dog box/saddle box option used)
Spray on Gravel Guard Under Nose
Spare Tire
Electric Brakes on all 4 Wheels
Torsion EZ Lube Axles

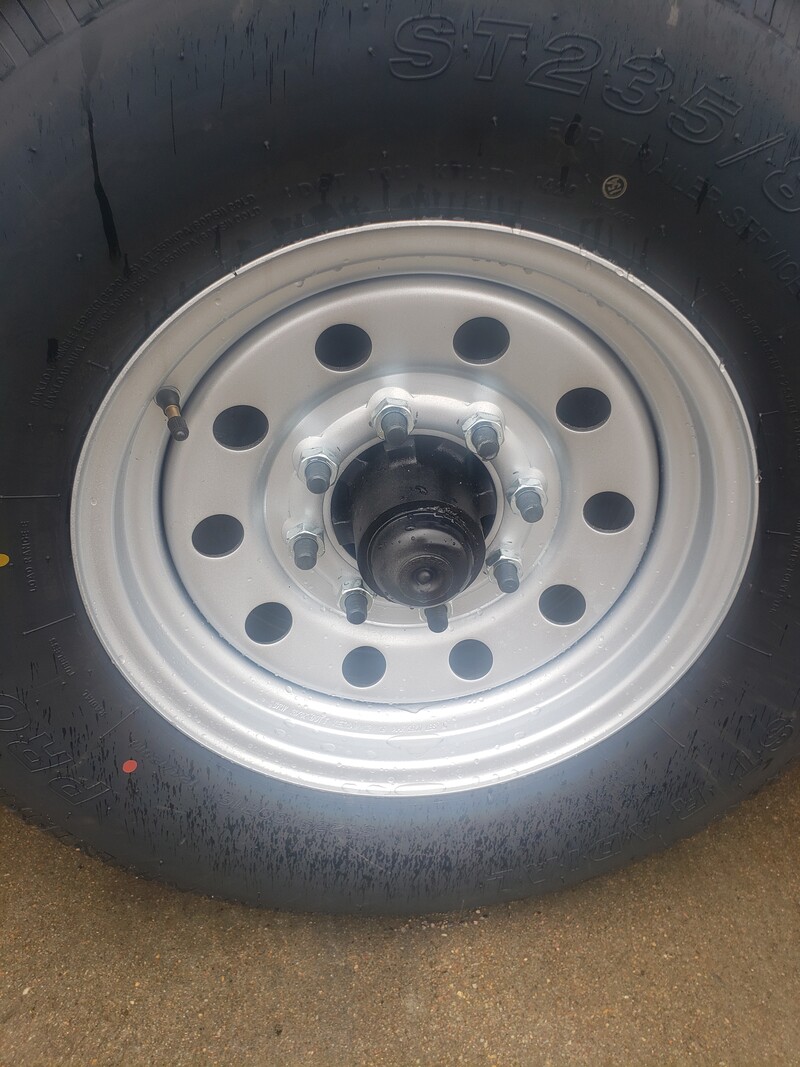

8 Bolt Hubs with 5/8" Studs

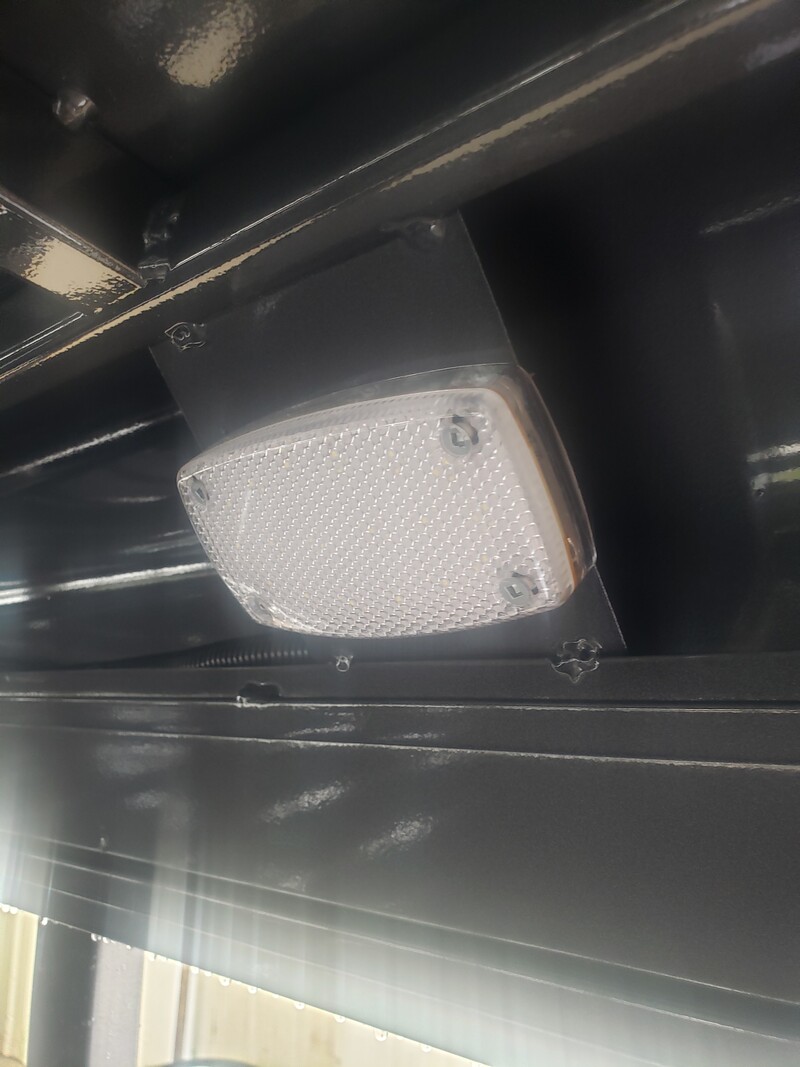

1 LED Dome Light per Compartment (1/2 top has no light in rear compartment)
Sealed Beam Recessed LED Lights
Breakaway Battery Box with Charger and Tester
7-Prong Heavy Cord w/Junction Box
Reflective Tape on Trailers over 10,000# GVWR
Adjustable 2-15/16" Coupler
Spring Loaded Dual Pin Jack

Notes

*Brush Fender with lower supports available as a no cost option where panel hooks are used.

TRIPLE AXLES RECOMMENDED ON TRAILERS 28' AND ABOVE

ANY TRAILER OVER 32' WILL NEED APPROVAL AND A QUOTE FROM THE FACTORY

26' AND UP HAVE A BEEFED UP STEM

28' AND UP HAVE BOXED IN COVE

28' AND UP HAS THE ESCAPE DOOR MOVED BACK 2'

STANDARD FEATURES ARE SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION

WEIGHTS MAY VARY ACCORDING TO OPTIONS

Optional Features

Height & Width Options

7’ Tall
7 ½’ Tall
7 ½’ Wide

Lights & Trim

Illuminated Titan Hat Nose Graphic
Illuminated Name Plate on Nose
Extra LED Dome Light
LED Porch Light
LED Back-Up Lights
Double Tail Lights
Extra Clearance Light
3 Lights in Nose
Mid-Mount LED Turn Signals (Per Pair)
LED High-Beam Loading Light
6 Prong Plug
7-Way Plug with Cold Weather Cord (Stays Flexible during Winter)
Semi Plug with Double Tail Lights
Wire Plug to Receiver Hitch
Elite Shield (Line X Equivalent) Gravel Guard (Per Square Foot)

Doors, Windows, Vents, & Ramps

Extra Escape Door
48" Wide Escape Door
54" Wide Escape Door

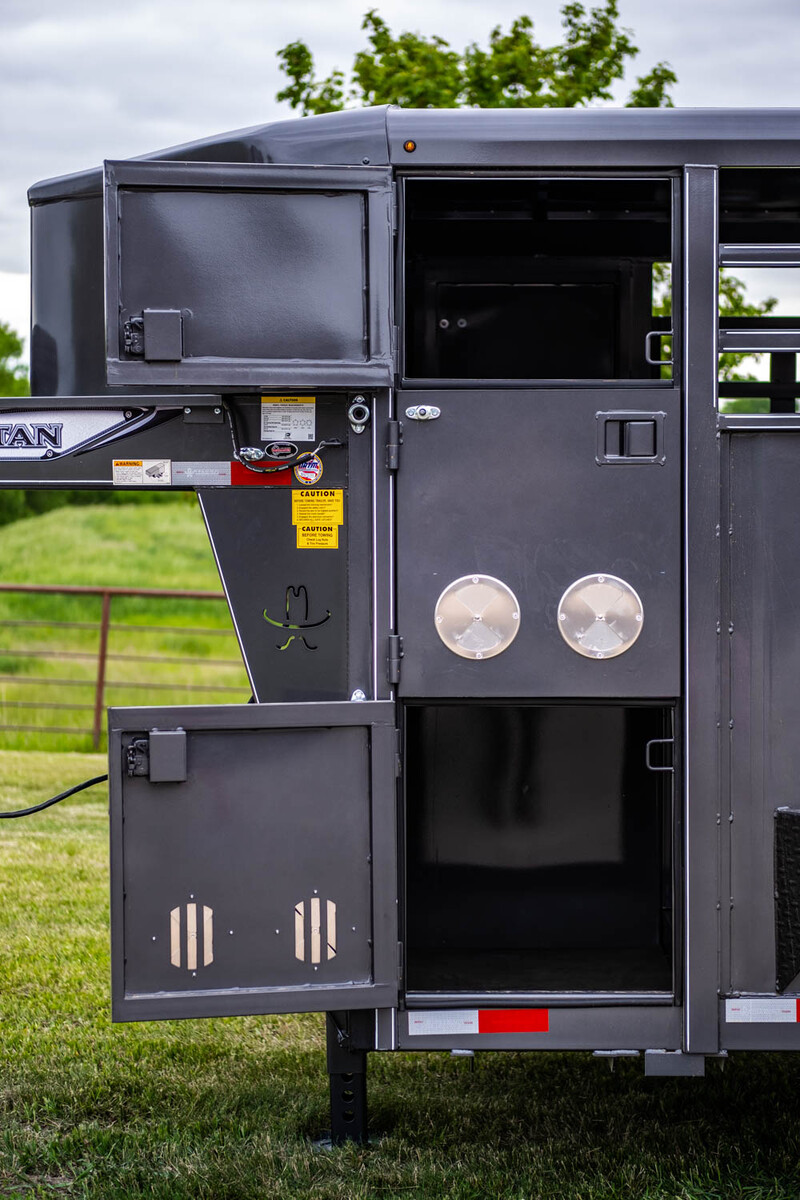

Tack Door in Nose (Left, Right or Front)
Sliding Vents Under Nose
Vent Package (Sliding Vents Under Nose & Tack Door In The Front)
2-Way Pop Up Roof Vent

Center Gate & Back Gate Options

Upgrade to Sliding Center Gate from Standard Center Gate
Extra Center Gate
Extra Sliding Center Gate
Extra Gate Setting
Delete Center Gate
One Piece Slatted Back Gate
Anti-Sag Block on Center Gate in Open Position
Beef Up Center Gate with Extra Tubing
Beef Up Center Gate with Extra Tubing and Tube Post on Hinge Side
Drop/Prop Rod on 1/2 Slide Back Gate

Axles (Non-Standard Axles may increase lead time)

Spring EZ Lube
Oil Bath Hub (Per Axle)
7000# Torsion EZ Lube
Triple 7000# Torsion EZ Lube
8000# Torsion EZ Lube with 14 ply Radial Tires
Triple 8000# Torsion EZ Lube with 14 ply Radial Tires
Electric over Hydraulic Brakes
Disc Brakes in Lieu of Drum Brakes on Electric over Hydraulic Axles

Tires (Goosenecks)

Provider 14 ply
Provider 215R17.5 H
Aluminum Wheels

Jacks

Double 12,000# Dual Pin Jacks
2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Double 2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Single Bulldog Velocity Series 12,000# Electric Jack (Includes Battery & Battery Tray)
Double Bulldog Velocity Series 12,000# Electric Jack (Independent Control, Includes Battery and Battery Tray)
Single Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Double Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.

Flooring Options

Sure Foot Flooring (Rubber Floor System - Self Draining)
Blackwood Rubber Infused Lumber
Rubber Composite Flooring (Includes 12" Cross Members)
Tread Rubber
Rubber Floor Mats

Dressing Room/Tack Room Options

Tack Organizer
Extra Bridle Hook
Extra Tie Loop
Extra Brush Tray

Miscellaneous Options

Receiver Hitch
Panel Hooks
Skid Plate on Rear Bumper
Block Axles up 2"
EZ Jack Mounted Under Spare Tire
Fold Up Spare Tire Carrier
