Rancher Gooseneck Livestock

Rancher Gooseneck Livestock

Available Lengths

  • 10', 12', 14', 16', 18', 20', 22', 24', 26', 28', 30', 32'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Available Pin Striping Colors

Silver
Gold
Black
Maroon
White
Green
Charcoal
Blue
Red

Estimated Weights

Length No. Center Gates Axles Est. Base Weight
10' 0 2 x 6000# 3600#
12' 0 2 x 6000# 3980#
14' 1 2 x 6000# 4460#
16' 1 2 x 6000# 4840#
18' 1 2 x 7000# 5280#
20' 1 2 x 7000# 5760#
22' 1 2 x 7000# 6140#
24' 2 2 x 7000# 6780#
26' 2 2 x 7000# 7220#
28' 2 2 x 7000# 7680#
30' 2 2 x 7000# 8100#
32' 2 2 x 7000# 8520#

Standard Features

Slope Nose
4' Tall - 14ga. Corrugated Sides
Escape Door on Passenger Side
6’6” Inside Height
6'8" Wide
Electric Brakes on all 4 Wheels
2" x 5" Tubing Frame
Crossmembers, Uprights & Roof Bows on 16” Centers

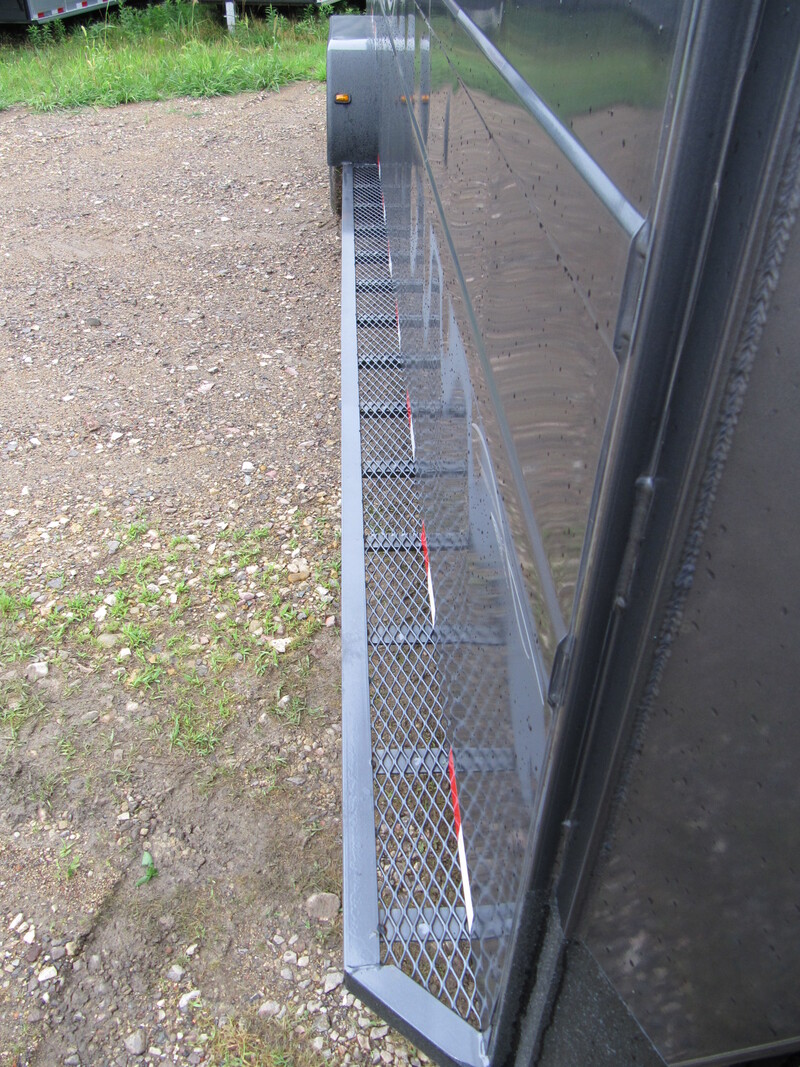

8" Running Boards w/ Expanded Metal
Fold Down Calf Gate in Nose
Torsion EZ Lube Axles
Spring Loaded Dual Pin Jack

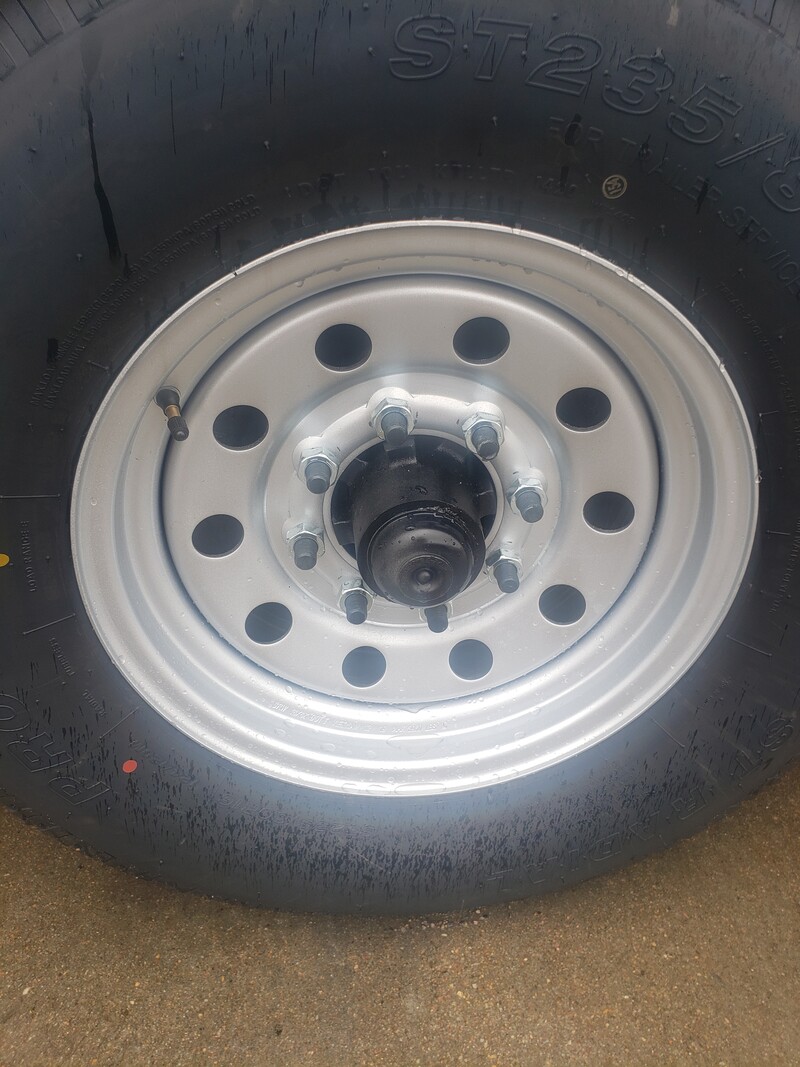

8 Bolt Hubs with 5/8” Studs
Spare Tire

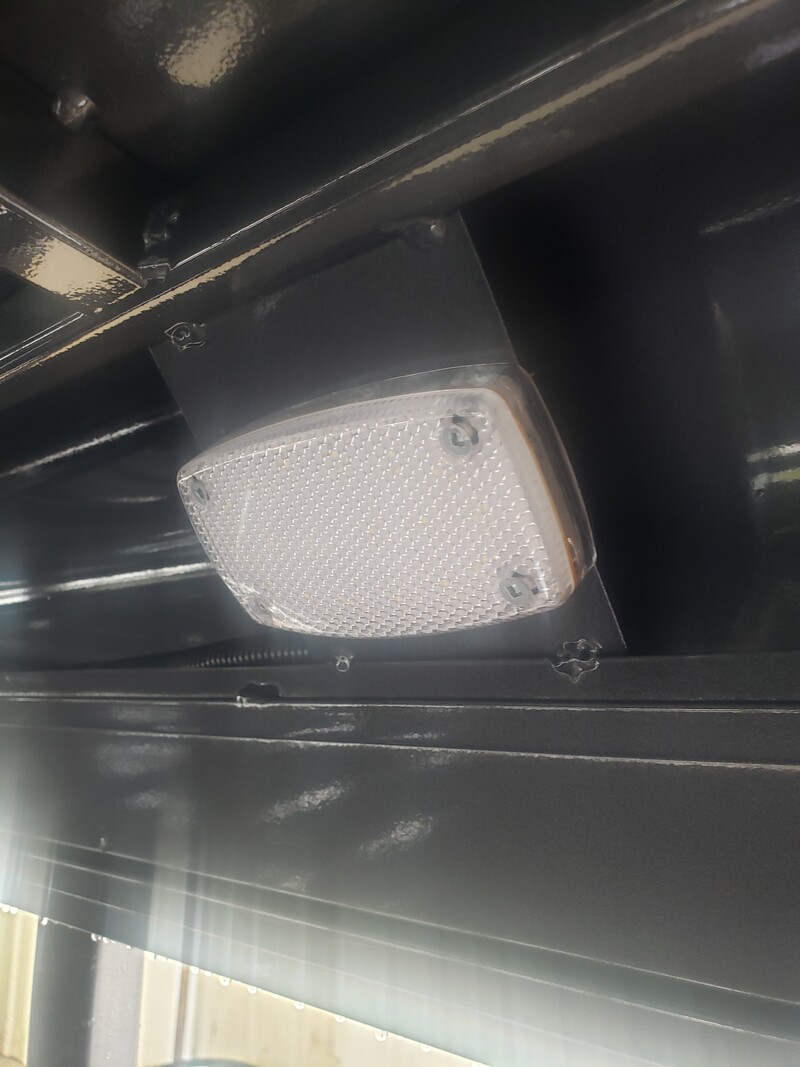

1 LED Dome Light per Compartment
Back Gate w/ 1/2 Slide, Slam Latch & Butterfly Latch
Rubber Rear Bumper
Spray on Gravel Guard
Sealed Beam Recessed L.E.D. Lights
Undercoat Inner Fenderwells
Breakaway Battery Box with Charger and Tester
Adjustable 2-5/16” Coupler
7-Prong Heavy Cord w/Junction Box
Rectangle Tube in Lieu of Upper Slats for Improved Access
Reflective Tape on Trailers over 10000# GVWR

Notes

  • TRIPLE AXLES RECOMMENDED ON TRAILERS 28' AND ABOVE
  • ANY TRAILER OVER 32’ WILL NEED AN APPROVAL AND A QUOTE FROM THE FACTORY
  • 24' AND UP HAVE BEEFED UP BACK END
  • 26' AND UP HAVE A BEEFED UP STEM
  • 28' AND UP HAS BOXED IN COVE
  • 28' AND UP HAS THE ESCAPE DOOR MOVED BACK 2'
  • STANDARD FEATURES SUBJECT TO CHANGE AT MANUFACTURERS DISCRETION
  • WEIGHTS MAY VARY ACCORDING TO OPTIONS

Optional Features

Sides & Windows

Enclosed With Metal
Plexiglas
Split Escape Door
Bull Package (Cross Members, Uprights & Roof Bows on 12” Centers)
Crossmembers only on 12” Centers
Uprights only on 12” Centers
Brush Fenders
Catwalk Running Boards

Height & Width Options

7’ Tall
7 ½’ Tall
8' Tall
8 ½’ Tall
9' Tall
7 ½’ Wide
8’ Wide

Lights & Trim

Illuminated Titan Hat Nose Graphic
Illuminated Name Plate on Nose
Extra LED Dome Light
LED Porch Light
LED Back-Up Lights
Double Tail Lights
Extra Clearance Light
3 Lights in Nose
Top Clearance Lights at Rear
Mid-Mount LED Turn Signals (Per Pair)
LED High-Beam Loading Light
6 Prong Plug
7-Way Plug with Cold Weather Cord (Stays Flexible during Winter)
Semi Plug with Double Tail Lights
Wire Plug to Receiver Hitch
Elite Shield (Line X Equivalent) Gravel Guard (Per Square Foot)

Doors, Windows, Vents, & Ramps

Extra Escape Door
48" Wide Escape Door
54" Wide Escape Door
Extra Factory Steel Door
Screened Camper Door w/ Vertical Window (Will not work with a Swingout Saddle Rack)
Walk thru Door in Solid Wall
Tack Door in Nose (Left, Right or Front)
Aluminum Fold Down Rear Ramp w/ Double Doors Above
Aluminum Fold Down Rear Ramp Behind Back Door(s)
4’ Aluminum Side Ramp with Door Above
5' Aluminum Side Ramp with Door Above
6' Aluminum Side Ramp with Door Above
Sliding Vents Under Nose
Vent Package (Sliding Vents Under Nose & Tack Door In The Front)
2-Way Pop Up Roof Vent
Dome Style Roof Vent with 12V Fan
Dome Style Roof Vent Braced for AC
16”x24” Vertical Window w/Slide in Factory Steel Door
30”x30” Bus Window w/ Slide
12”x24” Bus Window w/ Slide
18”x44” Bus Window w/ Slide
18”x24” Bus Window w/ Slide
14”x34” Bus Window w/ Slide
Escape Window in Nose

Aluminum Options

Brushed Aluminum Fenders
Aluminum Tread Bright Fenders
Aluminum Hay Rack (5' x 8') and Aluminum Ladder
Aluminum Tread Bright Gravel Guard Package

Center Gate & Back Gate Options

Upgrade to Sliding Center Gate from Standard Center Gate
Extra Center Gate
Extra Sliding Center Gate
Extra Gate Setting
Delete Center Gate
Split Nose Gate No Post
Split Nose Gate with Post
One Piece Slatted Back Gate
Back Gate Fully Enclosed With No Slide
Back Gate Fully Enclosed With ½ Slide
Double Back Doors w/ Cam Locks and Lockable Hasps
Slatted Double Back Doors w/ Cam Locks and Lockable Hasps
Anti-Sag Block on Center Gate in Open Position
Outside Center Gate Release to Shut Gate
Beef Up Center Gate with Extra Tubing
Beef Up Center Gate with Extra Tubing and Tube Post on Hinge Side
Drop/Prop Rod on 1/2 Slide Back Gate
Multi-Position Back Gate Lock (Locks Back Gate Open in Multiple Positions)

Compartments & Dividers

Permanent Rear Tack w/ Double Back Doors
Collapsible Rear Tack
Mid-Tack Full Width Behind Dress Wall w/ Door
Mid-Tack in Corner of Dress Room w/Door
Stud Gate (not telescopic, Slant Center Gate)
Slant Divider
Hang Rubber Mat from Bottom of Divider
Divider Extension
Solid Dressing Room Wall w/ Factory Steel Door & Sub-Floored
Swing Wall w/ Sides Enclosed to Front
Bi-Fold Swing Wall w/ Sides Enclosed to Front
Swing Wall w/ Sides Not Enclosed
Bi-Fold Swing Wall w/ Sides Not Enclosed

Axles (Non-Standard Axles may increase lead time)

Spring EZ Lube
Oil Bath Hub (Per Axle)
Single 7000# Torsion EZ Lube w/ 10 ply Tires
7000# Torsion EZ Lube
Triple 7000# Torsion EZ Lube
8000# Torsion EZ Lube with 14 ply Radial Tires
Triple 8000# Torsion EZ Lube with 14 ply Radial Tires
Electric over Hydraulic Brakes
Disc Brakes in Lieu of Drum Brakes on Electric over Hydraulic Axles

Tires (Goosenecks)

Provider 14 ply
Provider 215R17.5 H
Aluminum Wheels

Jacks

Double 12,000# Dual Pin Jacks
2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Double 2 Speed Drop Leg Jack (Not Spring Loaded or Dual Pin)
Single Bulldog Velocity Series 12,000# Electric Jack (Includes Battery & Battery Tray)
Double Bulldog Velocity Series 12,000# Electric Jack (Independent Control, Includes Battery and Battery Tray)
Single Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.
Double Bigfoot Hydraulic Jack includes Battery, Battery Tray and Battery Box.

Flooring Options

Sure Foot Flooring (Rubber Floor System - Self Draining)
Blackwood Rubber Infused Lumber
Rubber Composite Flooring (Includes 12" Cross Members)
Tread Rubber
Rubber Floor Mats

Dressing Room/Tack Room Options

Tack Organizer
Kick Mat on Slant Wall (Horse Side)
3 Tier Saddle Rack
4 Tier Saddle Rack
To Make Saddle Rack Swing Out
Extra Saddle Rack Setting
Swingout Blanket Bar (6 Tier)
Removable Bridle Hook Bar (4 Bridle Hooks)
Extra Bridle Hook
Extra Tie Loop
Extra Brush Tray
Extra Blanket Bar
Water Tank
Straight Nose
Short Straight Nose (1/2 Nose)
Full Width Boot Box - Oak with Titan Logo
1/2 Boot Box - Oak with Titan Logo
Electrical Package - 30A Cord, Breaker Box and 1 Outlet
Additional Outlets
13,500 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
15,000 B.T.U. Air Conditioner includes 30A Cord and Breaker Box
Carpet Package

Horse/Stock Area Options

Buggy Ramps
Corner Feed Bag
Padded Stall
Undercoat Inside Roof
Undercoat Underneath of Trailer
Undercoat Inside Walls 20" Up

Miscellaneous Options

Auto lock Coupler with Cable Release
Tie Rail On Side
Receiver Hitch
Camper Step
Panel Hooks
Skid Plate on Rear Bumper
Battery Tray
12 Volt Deep Cycle Battery
Aluminum Battery Box
Plastic Battery Box
Propane Tray
Awning
Block Axles up 2"
Plate/Beefed-Up Rear Corners - Standard on 24' and Above
EZ Jack Mounted Under Spare Tire
Fold Up Spare Tire Carrier
