Deck Over Tilt Flatbed

Deck Over Tilt Flatbed

Available Lengths

  • 25', 25'+2', 25'+4', 25'+6', 25'+8', 25'+10'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Available Pin Striping Colors

Silver
Gold
Black
Maroon
White
Green
Charcoal
Blue
Red

Estimated Weights

Length Axles Est. Base Weight
25' 2 x 7000# 5420#
25'+2' 2 x 7000# 5780#
25'+4' 2 x 7000# 5780#
25'+6' 2 x 7000# 6060#
25'+8' 2 x 7000# 6320#
25'+10' 2 x 7000# 6580#

Standard Features

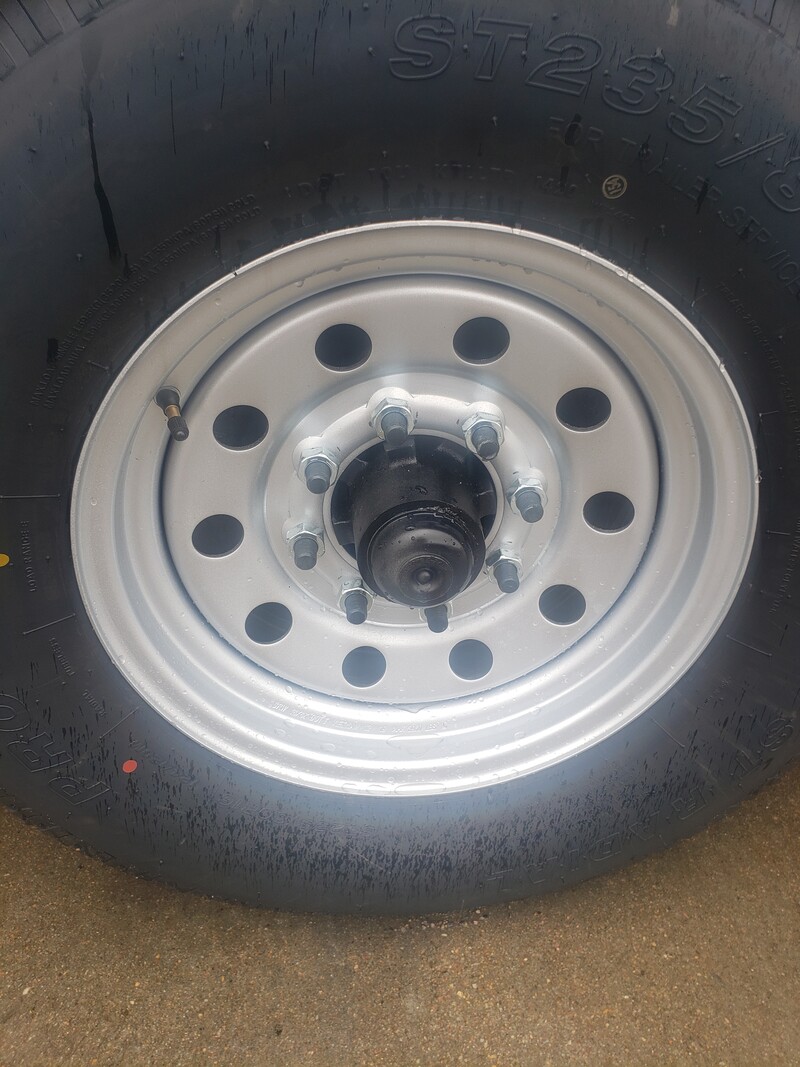

Dexter Axle w/ 8 Bolt Hub
235R16E Spare Tire
Sealed Beam Recessed LED Lights
12V Deep Cycle Battery
Treated 2" x 8" Floor Boards
7-Prong Heavy Cord
2-5/16" Adjustable Gooseneck Coupler
Stem Made With Same I-Beam as Frame
Safety Chains & Hooks
Hydraulic Powered Scissor Lift
Channel Iron Rub Rail w/ Stake Pockets & 5/16" Flat
Electric Brakes on all 4 Wheels
3" Channel Cross Members on 16" Centers
110V Charging Plug
Coated Inner Frame Under Floor
Breakaway Battery Box w/ Charger and Tester
Spring Loaded Dual Pin
Jack

Notes

Triple 7K, Triple 8K, and Dually Axles Include Double Jacks and Tool Box Between Jacks.

Optional Features

Axles (Non-Standard Axles may increase lead time)

8000# Torsion EZ Lube Drum Brakes w/ 14 ply Tires
Triple 7000# Torsion EZ Lube Drum Brakes
Triple 8000# Torsion EZ Lube Drum Brakes w/ 14 ply Tires
10,000# General Duty Tandem Dually Oil Bath
10,000# Heavy Duty Tandem Dually Oil Bath
12,000# Tandem Dually Oil Bath
10,000# G.D. Tandem Dually Oil Bath w/ Electric over Hydraulic
10,000# H.D. Tandem Dually Oil Bath w/ Electric over Hydraulic
12,000# Tandem Dually Oil Bath w/ Electric over Hydraulic
10,000# H.D. Tandem Dually Oil Bath w/ Air Brakes
12,000# Tandem Dually Oil Bath w/ Air Brakes
Dexter HDSS Suspension

Tires (Goosenecks)

Provider 215R17.5 H
Provider 235R17.5 J - Super Single (5 tires)

Miscellaneous Options

12,000# Warn Winch includes Battery, Battery Box & Winch Plate
Generic 12,000# Winch
Wireless Remote (2-Way, Electric Only)
Bumper Hitch
Pentle Hitch
