Aluminum Bumper Hitch Livestock

Aluminum Bumper Hitch Livestock

Available Lengths

  • 14', 16', 18'

Available Paint Colors

Birch Metallic
Chestnut Metallic
Deep Blue Metallic
Gunmetal Metallic
Stealth Gray Metallic
Bright Red
Construction Yellow
Deep Green Metallic
Implement Orange
Super White
Bright Silver Metallic
Dark Gray Metallic
Deep Red Metallic
Jet Black

Estimated Weights

Length Axles Est. Base Weight
14' 2 x 6000# 2740#
16' 2 x 6000# 3200#
18' 2 x 6000# 3660#

Standard Features

Contoured Smooth Extruded Side
Tapered Nose
1 Piece Polypropylene Honeycomb Roof
Aluminum Wheels, Matching Spare

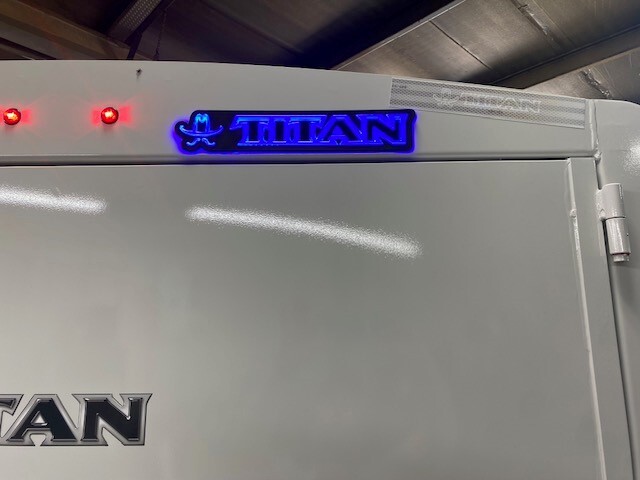

Illuminated Titan Hat Nose Graphic
8 Bolt Hubs with 9/16" Studs
Escape Door on Driver Side
Teardrop Aluminum Fenders
Plexiglas Track
Safety Transport Chain & Hooks
Rubber Rear Bumper
6'6" Inside Height
6'8" wide
22-1/2" Up Torsion EZ Lube Axles w/ Electric Brakes on all 4 Wheels
15" Load Height
Uprights & Roof Bows on 16" Centers
1 LED Dome Light per Compartment
Sealed Beam Recessed LED Lights
6" Running Boards
Back Gate w/ 1/2 Slide, Slam Latch, & Butterfly Latch
Reflective Tape on Trailers over 10000# GVWR
7-Prong Heavy Cord w/ Junction Box
Breakaway Battery Box with Charger and Tester

Optional Features

Height & Width Options

7' Tall
7'6" Tall
8' Tall

Aluminum Options

Aluminum Hay Rack and Ladder (6'8" wide)

Axles (Non-Standard Axles may increase lead time)

7000# Torsion EZ Lube

Jacks

5K Topwind Jack

Flooring Options

Sure Foot Floor with Drain Holes (Rubber Floor System - Self Draining)
Rubber Mats

Dressing Room/Tack Room Options

Carpet Package
3 Tier Saddle Rack
4 Tier Saddle Rack
4 Tier Swing-Out Blanket Bar
Bridle Hooks

Gates & Compartments

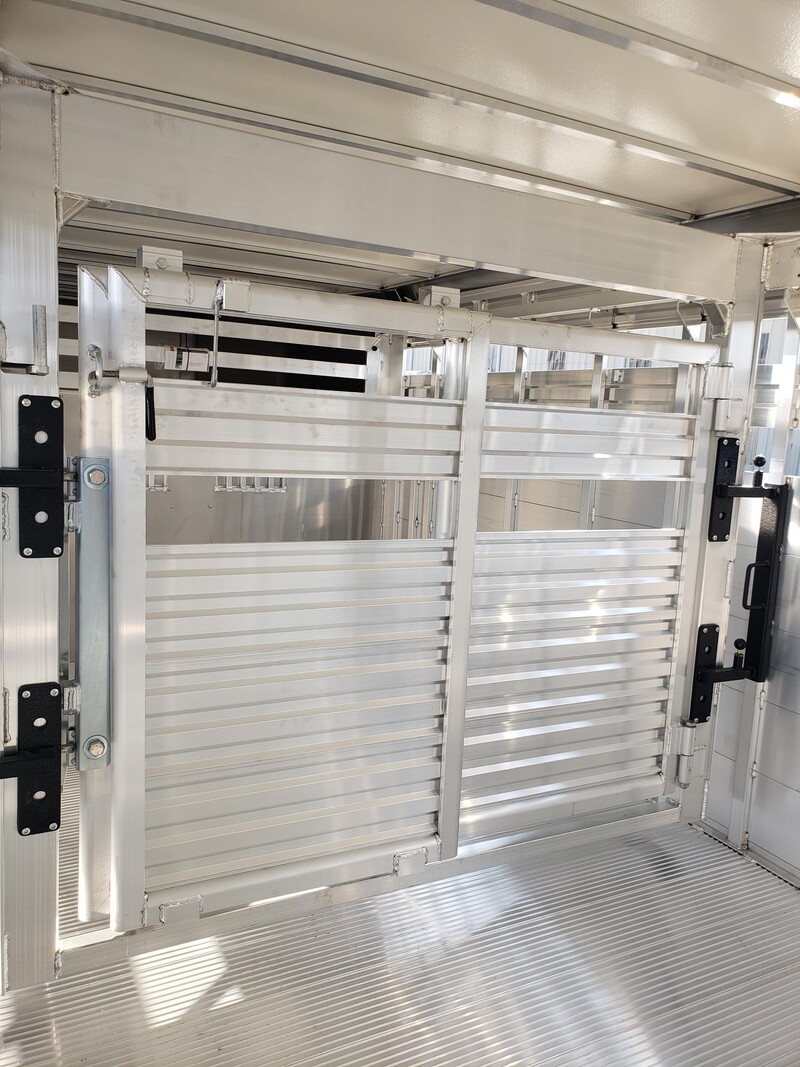

Sliding Center Gate
Extra Center Gate
Extra Sliding Center gate
Floating Center Gate (will adjust from fenders forward and store in front of Escape Door)
Extra Gate Setting
Delete Center Gate
Extra Escape Door
Split Escape Door
Escape Door Moved to Passenger Side
Slant Divider
Stud Divider
Double Back Doors
One Piece Slatted Back Gate w/ Cam Lock
One Piece Enclosed Back Gate w/ Cam Lock
One Piece Enclosed Back Gate with 1/2 Slide
Fold Down Rear Ramp Behind Standard Back Gate
Fold Down Rear Ramp With Double Doors Above
4' Wide Full Height Side Ramp in Lieu of Escape Door
4' Wide Full Height Side Ramp Behind Escape Door or Opposite Escape Door
Dressing Room Wall with HD Door and Window in Door
Full Width Mid Tac Wall with HD Door and Window in Door
Walk-Thru Door in Dressing Room Wall
Collapsible Rear Tack (with one piece back gate)
Mangers With 2 Outside Doors (per stall)

Vents & Lights

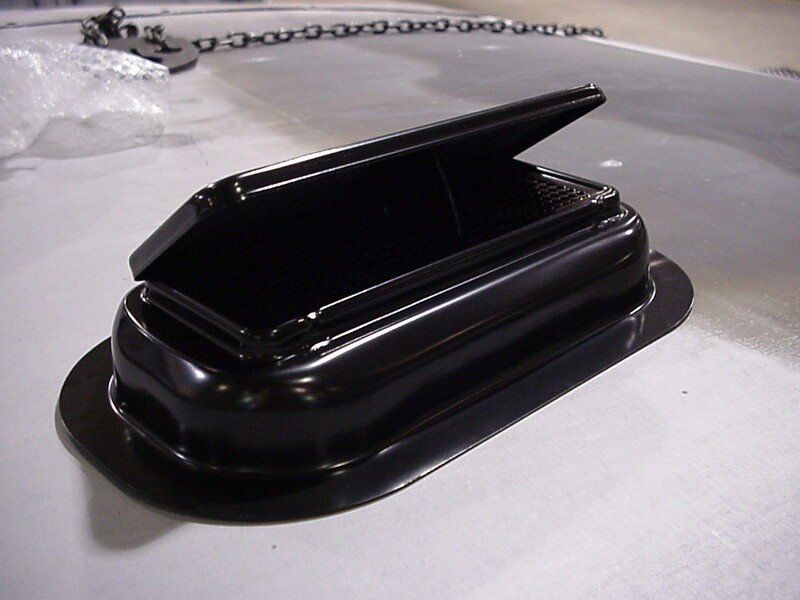

2-Way Pop-Up Roof Vent
Extra Clearance Light
Extra LED Dome Light
Lighted Customized Name Plate on Nose (special order item)
3 Lights in Nose

Miscellaneous Options

Double Walled with Aluminum
Kick Mats on Double Wall
Kick Mats on Slant Wall
Plexiglas
Double Deck
12" Uprights & Roof Bows
Aluminum Tie Rail
Bolt on Aluminum Outside Ties
Paint Nose Sheets (standard colors)
Mid Mount Drop Down Feed Door with Window and Drop Bars
18 x 24 Bus Window on Butt Side

Fender Options

Brush Fenders
Heavy Duty Fabricated Fenders
